The Thicker, the Better
But with reinforcement in a thin concrete panel, that is not always true.
A note on the photos below: these panels are from another precast manufacturer, spotted on a jobsite — not our product. We think it's a useful, real-world case study of what goes wrong, and why we build our panels differently.

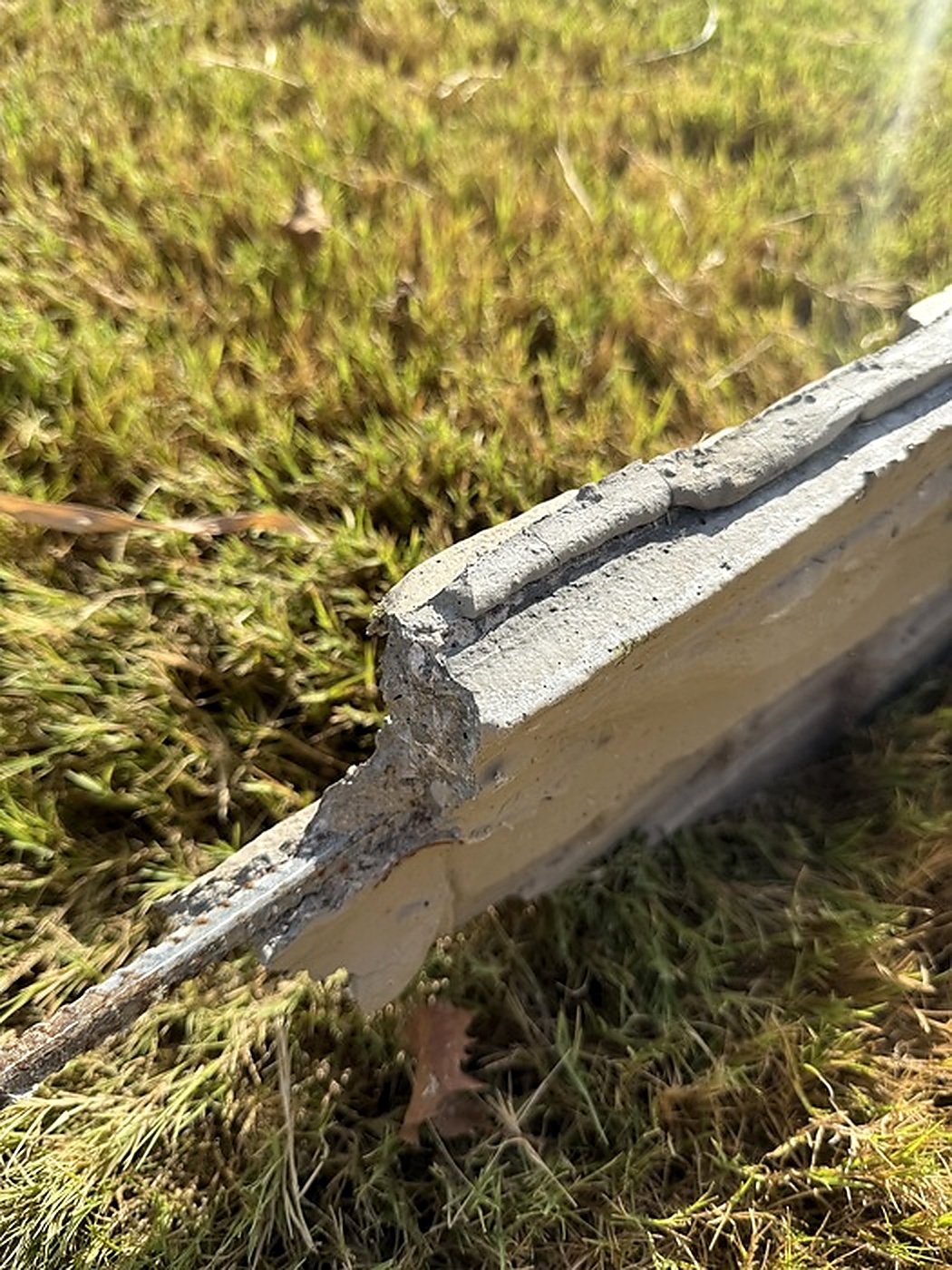

Here is a real example of a thin concrete panel failure. At first glance, the heavy steel reinforcement inside should make the panel stronger. But the photos show something else: the steel remained intact while the concrete around it failed.

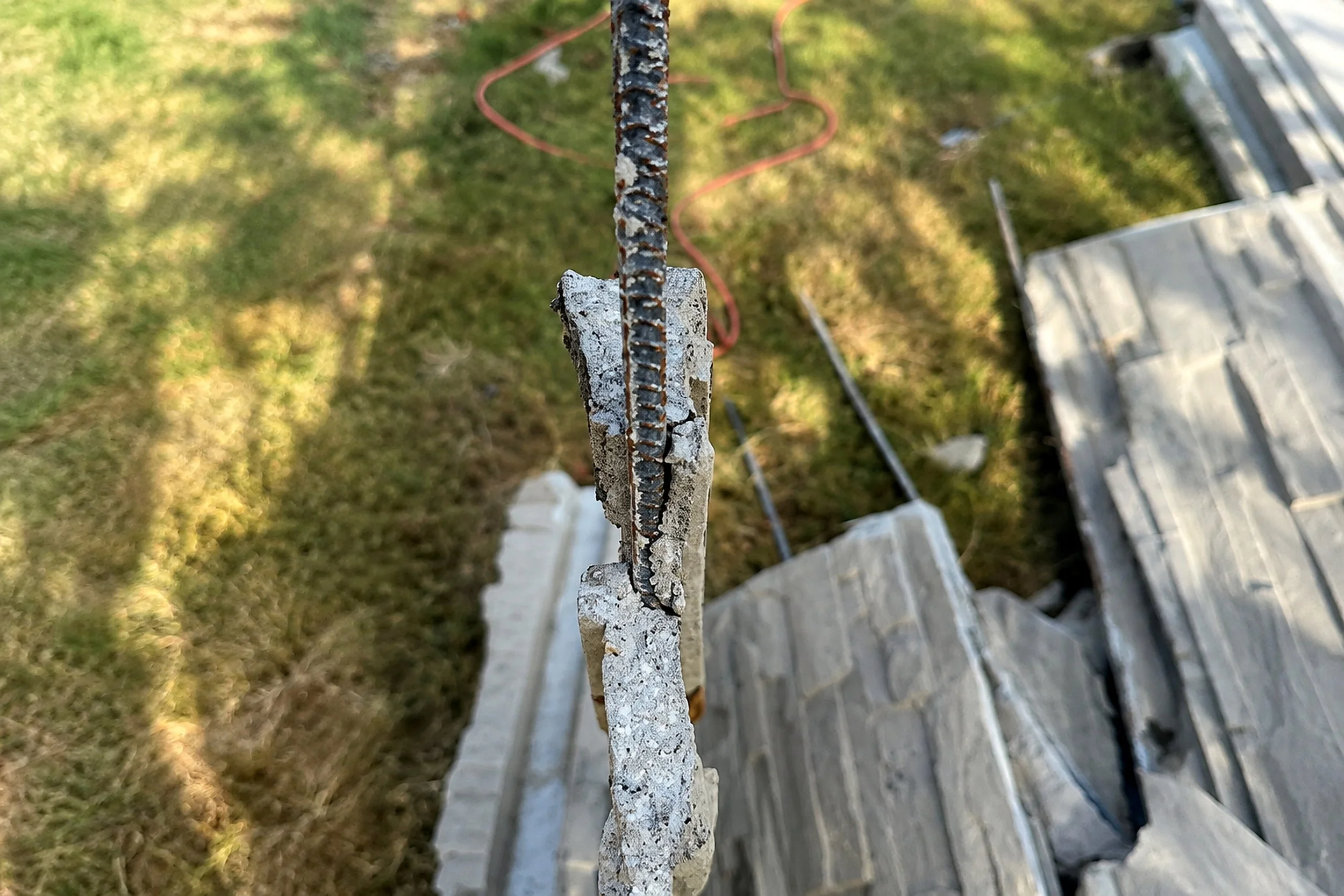

The rebar survived. The concrete around it didn't.
Heavy reinforcement occupying much of the thin concrete section, leaving limited concrete cover around the steel.
When the Reinforcement Becomes Too Large for the Panel
The maximum thickness of these panels is about 2 inches. Because of the texture, some sections can be significantly thinner.
A thick reinforcing bar can occupy a large portion of a section this thin. The less concrete that remains around the steel, the less material there is to carry load and keep the bar properly embedded in the panel.
Under load, the concrete can begin to crack and spall along the thick reinforcement. That failure pattern is clearly visible in these photos.
A Thin Panel Is Not the Problem

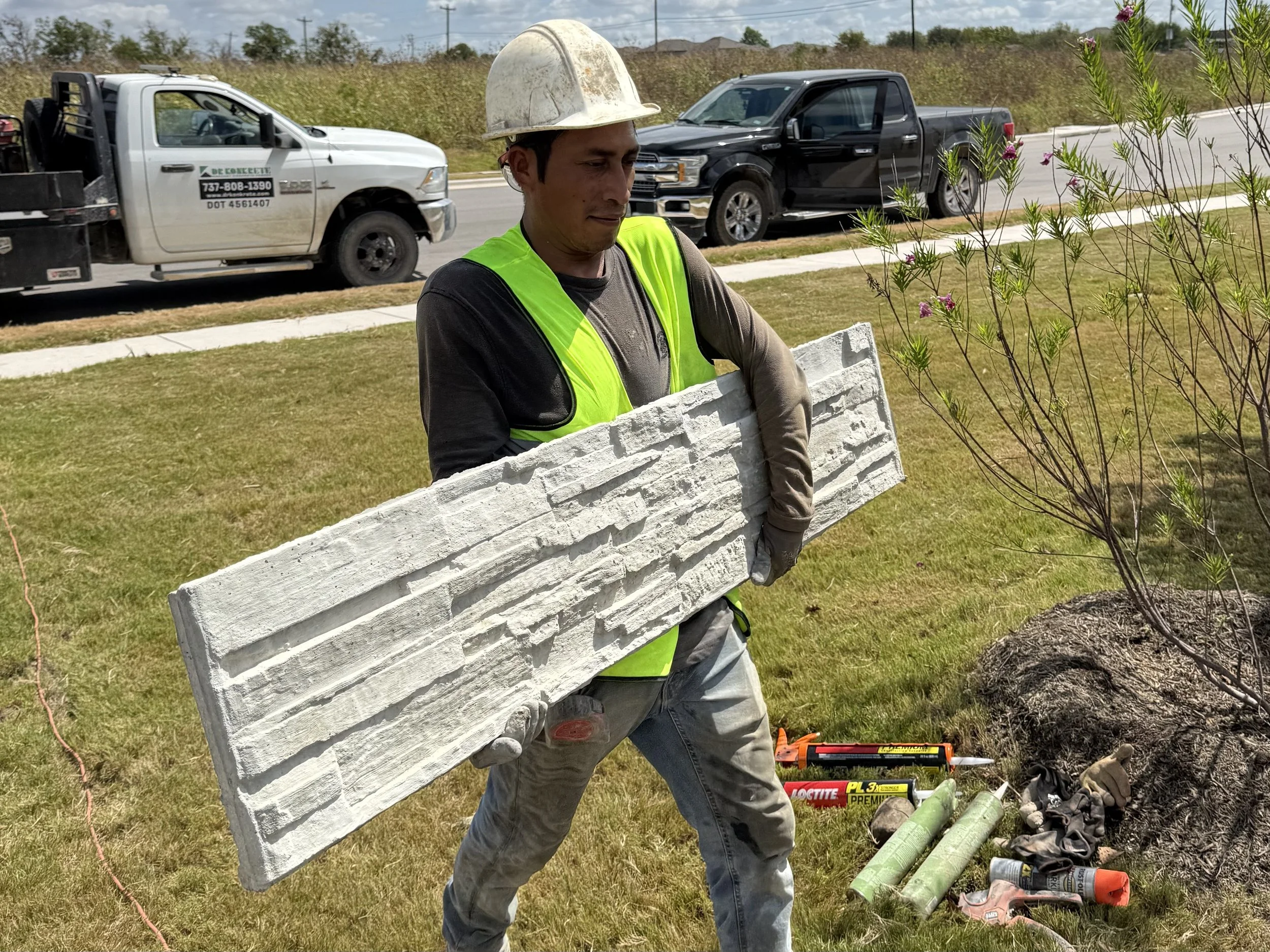

These panels are intentionally made relatively thin. That keeps them practical to transport and install without heavy lifting equipment.
The answer is not simply to make the panel thicker. The goal is to choose reinforcement that matches the actual geometry of the panel.
After a Crack Forms, a Second Problem Begins
If a crack reaches the steel, moisture can reach the reinforcement. Corrosion products occupy more volume than the original steel and can create additional pressure on the surrounding concrete.
A relatively small defect can therefore continue to grow from the inside. The amount of concrete around the steel matters not only when the panel is loaded, but also for long-term durability.
Why DR Konkrete Uses Smaller-Diameter Wire
In our panels, we use W2.9 reinforcing wire instead of relying on one large reinforcing bar.
The purpose is not simply to use “less steel.” The goal is to distribute the reinforcement within the thin panel while leaving enough concrete around the steel.
This is especially important in thin concrete panels because their thickness changes with the surface profile.Where the pattern is deeper, the concrete section is smaller. Reinforcement diameter and placement therefore need to suit those critical areas.
The Key Is the Right Balance
In reinforced concrete, steel and concrete have to work together. If the steel is very strong but too little concrete remains around it, the steel is no longer the weak link - the concrete is.
The Right Reinforcement for the Right Panel
The lesson is simple: reinforcement should be selected for the actual concrete section, not simply by choosing the largest steel available.
In thin concrete panels, the relationship between the steel, the concrete cover, and the changing thickness of the panel matters.
At DR Konkrete, we believe good concrete work comes from understanding how all of these elements work together.
More is not always better. Better matched is better.
Thin concrete panels are designed to remain practical to handle and install while using reinforcement suited to the panel geometry.
